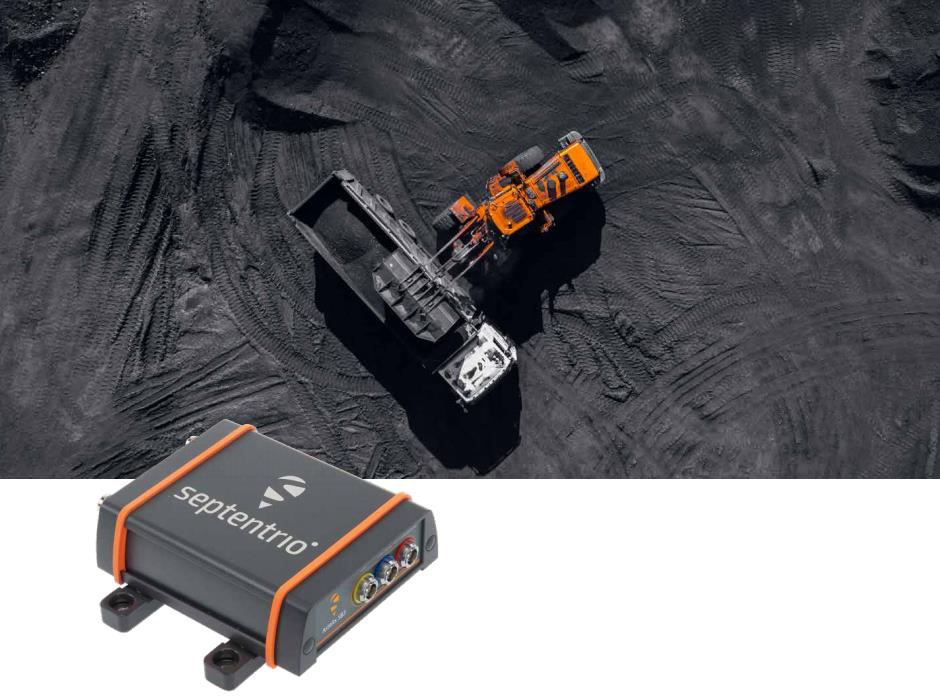

AsteRx SB3 Pro is a multi-frequency GNSS receiver  delivering centimeter-level RTK positioning in a  rugged enclosure. Its compact and rugged housing  is tailored for effortless integration in machine  automation applications.

KEY FEATURES

* All in view, multi-constellation, multi-frequency  satellite tracking

* Robust and compact IP68 weatherproof housing

* AIM+ Interference monitoring and mitigation  function

* Sub-degree GNSS heading option

* GNSS+ algorithms guaranteeing reliable  performance

Rover applications

 The AsteRx SB3 Pro is a rover GNSS receiver with best-in-class positioning performance, employing Septentrio’s latest  multifrequency multi-constellation RTK technology. It delivers  robust and reliable positions in challenging environments in  both single or dual antenna modes. Its specialized design  makes it an easy-to-use, cost-efficient rover receiver.

Feature-rich in a compact design

Simultaneous multi-constellation, multi-frequency tracking  combined with the GNSS+ toolset and high-update rate, lowlatency output mean that AsteRx SB3 Pro is ideally suited  for any space-constrained industrial application under any  conditions.

Ease of integration

The AsteRx SB3 Pro integrates seamlessly into any system  thanks to fully documented interfaces, commands and data  messages. Septentrio’s open interfaces and software tools  (WebUI, RxTools) make it easy to the integrate, configurate  and control the AsteRx SB3 Pro.

FEATURES

GNSS signals

544 Hardware channels for simultaneous tracking  of most visible signals:

* GPS: L1 C/A, L2C, L2 P(Y), L5

* GLONASS: L1 C/A, L2C/A, L3, L2P

* BeiDou: B1I, B1C, B2a, B2I, B3I

* Galileo: E1, E5a, E5b

* QZSS: L1 C/A, L2C, L5

* NavIC: L5

* SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM

Septentrio’s patented GNSS+ technologies

* AIM+ unique anti-jamming and monitoring  system against narrow and wideband  interference

* APME+ a posteriori multipath estimator for  code and phase multipath mitigation

* LOCK+ superior tracking robustness under  heavy mechanical shocks or vibrations

* IONO+ advanced scintillation mitigation

* RAIM+ (Receiver Autonomous Integrity  Monitoring)

Formats

Septentrio Binary Format (SBF), fully documented  with sample parsing tools

NMEA 0183, v3.01, v4.0

RTCM v2.x, v3.x (MSM messages included)

CMR v2.0 and CMR+ (CMR+ input only)

 Connectivity

3 Hi-speed serial ports (RS232)

Ethernet port (TCP/IP, UDP, LAN 10/100 Mbps)

Power over ethernet

1 High-speed/full-speed USB device port

2 Event markers

FTP server

SUPPORTING COMPONENTS

 Embedded Web UI with full control and  monitoring functionality.

RxTools, a complete and intuitive GUI tool set for  receiver control, monitoring, data analysis and  conversion.

GNSS receiver communication SDK. Available for  both Windows and Linux.

Optional accessories

* Antennas

* GeoTagZ re-processing software and SDK  library for UAS applications

Certification

IP 68, RoHS, WEEE, CE FCC Class A Part 15, UKCA IEC 62368-1

1  Open sky conditions

2  RMS level

3  Baseline < 40 Km

4  99.9%

5  Including software compensation of sawtooth effect

6  No information available (no almanac, no approximate   position)

7  Ephemeris and approximate position known

8  Optional feature
