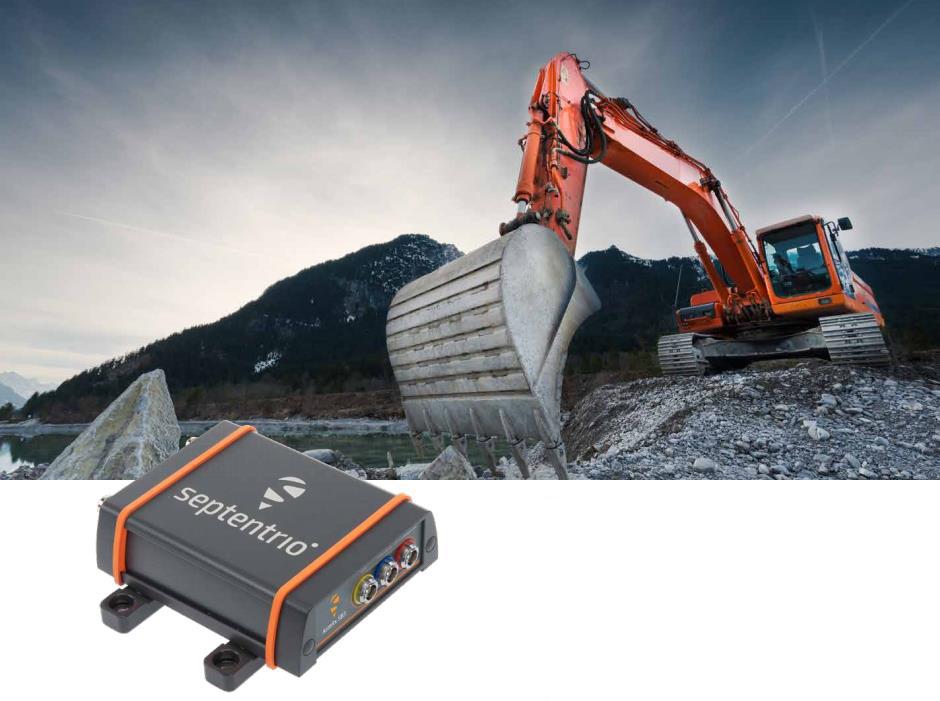

AsteRx SB3 Pro+ is the most flexible housed  multi-frequency GNSS receiver. It can be used as  a rover or a base station with ultra-high update  rate and logging functionality. Housed in a  ruggedized enclosure it delivers top performance  even in the harshest environments.

KEY FEATURES

* All in view, multi-constellation, multi-frequency  satellite tracking

* Sub-degree GNSS heading & pitch or heading & roll

* AIM+ Interference monitoring and mitigation  function

* Flexibility to be used either as a rover or a base  station

* GNSS+ algorithms guaranteeing reliable  performance

* Compact, yet rugged design

Reliable heading performance

 With dual-antenna input, AsteRx SB3 Pro+ provides precise,  reliable and positioning independent heading combined with  centimeter-level RTK. GNSS heading provides unmatched  performance in both static and dynamic conditions removing  the reliance on vehicle dynamics or magnetic sensors.

Feature-rich in a compact design

Simultaneous multi-constellation, multi-frequency tracking  combined with the GNSS+ toolset and high-update rate, lowlatency output mean that AsteRx SB3 Pro+ is ideally suited  for any space-constrained industrial application under any  conditions.

Ease of integration

The AsteRx SB3 Pro+ integrates seamlessly into any system  thanks to fully documented interfaces, commands and data  messages. Septentrio’s open interfaces and software tools  (WebUI, RxTools) make it easy to the integrate, configurate  and control the AsteRx SB3 Pro+.

FEATURES

GNSS signals

544 Hardware channels for simultaneous tracking  of most visible signals:

* GPS: L1 C/A, L2C, L2 P(Y), L5

* GLONASS: L1 C/A, L2C/A, L3, L2P

* BeiDou: B1I, B1C, B2a, B2I, B3I

* Galileo: E1, E5a, E5b

* QZSS: L1 C/A, L2C, L5

* NavIC: L5

* SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM

Septentrio’s patented GNSS+ technologies

* AIM+ unique anti-jamming and monitoring  system against narrow and wideband  interference

* APME+ a posteriori multipath estimator for  code and phase multipath mitigation

* LOCK+ superior tracking robustness under  heavy mechanical shocks or vibrations

* IONO+ advanced scintillation mitigation

* RAIM+ (Receiver Autonomous Integrity  Monitoring)

Formats

Septentrio Binary Format (SBF), fully documented  with sample parsing tools

NMEA 0183, v3.01, v4.0

RTCM v2.x, v3.x (MSM messages included)

 CMR v2.0 and CMR+ (CMR+ input only)

Connectivity

3 Hi-speed serial ports (RS232)

Ethernet port (TCP/IP, UDP, LAN 10/100 Mbps)

Power over ethernet

1 High-speed/full-speed USB device port

2 Event markers

FTP server

16 GB internal memory

SUPPORTING COMPONENTS

 Embedded Web UI with full control and  monitoring functionality.

RxTools, a complete and intuitive GUI tool set for  receiver control, monitoring, data analysis and  conversion.

GNSS receiver communication SDK. Available for  both Windows and Linux.

Optional accessories

* Antennas

* GeoTagZ re-processing software and SDK  library for UAS applications

1  Open sky conditions

2  RMS level

3  Baseline < 40 Km

 4  99.9%

5  Including software compensation of sawtooth effect

6  No information available (no almanac, no approximate   position)

7  Ephemeris and approximate position known
