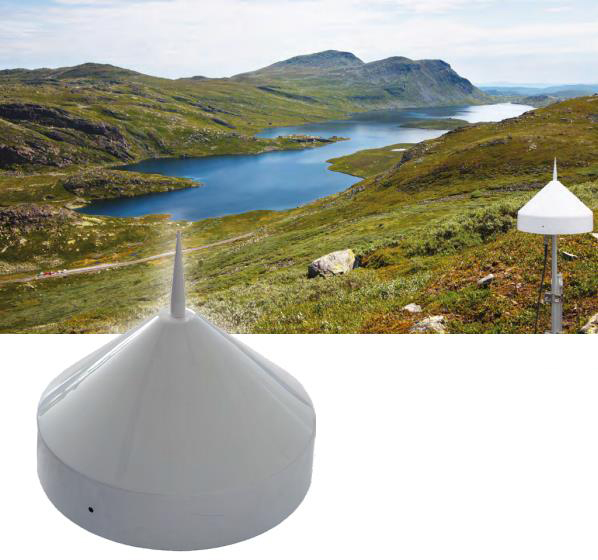

PolaNt Choke Ring B3/E6


Septentrio’s PolaNt Choke Ring B3/E6 is a high precision geodetic multi-frequency, multiconstellation choke ring antenna for use with Septentrio’s PolaRx family of high performance multiple-frequency GNSS reference receivers. It supports current and planned GNSS signals including BeiDou B3 and Galileo E6. The PolaNt Choke Ring antenna incorporates lownoise amplifiers, powerful filters for out-of-band interference rejection combined with superior multipath rejection and a high phase centre stability. It is a competitive alternative for Dorne & Margolin based antennas and is designed for high-end applications and reference station operations. The sealed radome allows reliable signal reception even in harsh conditions.

KEY FEATURES

* Support current and planned GNSS signals from GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS and SBAS

* BeiDou B3 and Galileo E6 capable

* High phase center stability

* IGS calibration available with or without radome

FEATURES

GNSS Frequencies

L-Band (MSS)

GPS L1, L2, L5

GLONASS L1, L2, L3

Galileo E1, E5a, E5b, E6

BeiDou B1, B2, B3
