TW7972 / TW3972
DOWNLOAD

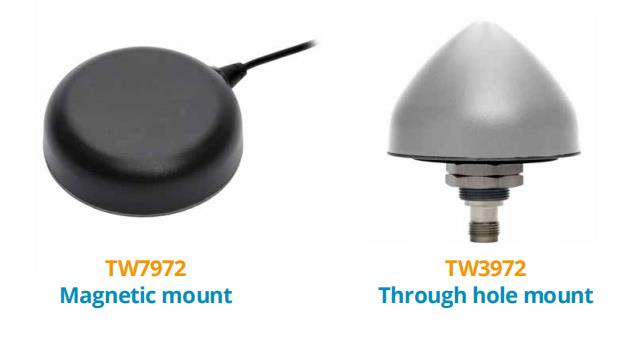

The TW7972 and TW3972 are lightweight highprecision antennas supporting triple-band GPS/ QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/ E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], plus L-band correction services coverage, and are especially designed for precision triple-frequency positioning. TW7972 is magnetic mount and TW3972 is through hole mount.
These antennas provide superior multipath rejection and axial ratio, a linear phase response, and tight Phase Centre Variation (PCV), while protecting against intermodulation and saturation caused by high-level LTE 700 Mhz signals.
These antennas are ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters.
KEY FEATURES
* Multi-constellation tracking: GPS, Galileo, GLONASS, BeiDou, NavIC and QZSS
* Reception of Inmarsat L-Band signals compatible with correction services
* Triple-band GNSS antenna

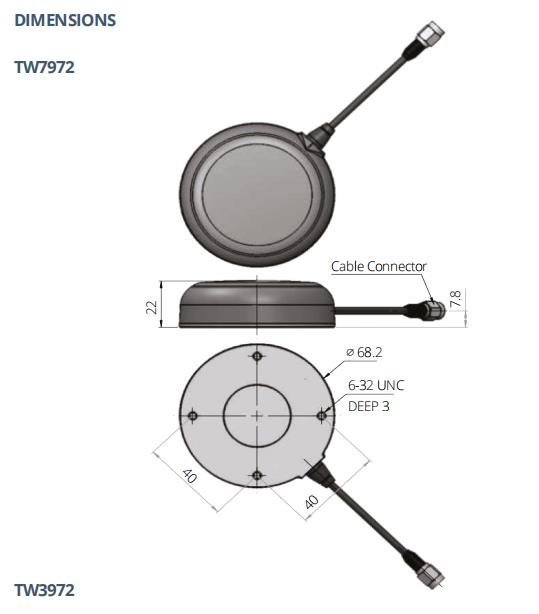

* Magnetic mount IP67 for TW7972

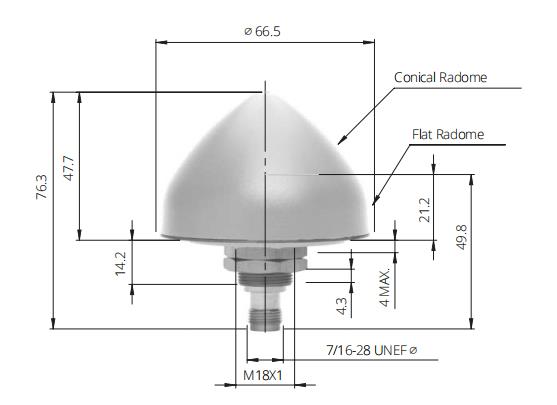

* Through hole mount IP69K for TW3972
FEATURES Signals L-Band (MSS) GPS L1, L2, L5 GLONASS L1, L2, L3 Beidou B1, B2 Galileo E1, E5a, E5b SBAS L1, L5 NavIC L5 QZSS L1, L2, L5
Frequencies 1539-1606 MHz 1160-1255 MHz
Polarisation RHCP
Axial Ratio < 2dB typ.
Radiation Coverage Zenith 4.0 dBic typ.
Amplifier Gain 32 dB typ. Noise Figure 2.5 dB typ. Input Voltage +2.5 to +16 VDC Current 24 mA (typ) Impedance 50 Ω VSWR ≤ 1.5:1 typ.
Physical and Environmental Radome / Enclosure EXL9330, Base: Zamak Weight 180g (TW7972) 185g (TW3972) Temperature -40°C to + 105°C (TW7972) Temperature -70°C to + 85°C (TW3972) Certification CE, FCC, RED, RoHS and WEEE IP rating IP67 (TW7972) IP69K (TW3972) Vibration MIL-STD-810E Method 514.5 Shock and Drop MIL-STD-810G Method 516.6
|
