mosaic X5



Septentrio mosaic-X5™ is a multi-constellation receiver  packaged in a low-power surface mount module.  With a wide array of interfaces, mosaic-X5™ has been  specifically designed for the needs of mass market  applications like robotics and autonomous systems.  This high-reliability receiver tracks all Global Navigation  Satellite System (GNSS) constellations and supports all  current and future signals. With Septentrio’s unique  AIM+ technology for interference mitigation included,  Septentrio is now offering a performance benchmark  in mass market GNSS positioning.


* Small size, big performance

* All-in-view satellite tracking: multi-constellation, multi-frequency

* Best-in-class RTK performance

* AIM+ unique interference monitoring and mitigation  technology

* Industry-leading ultra-low power consumption

* Easy-to-integrate


No performance compromises

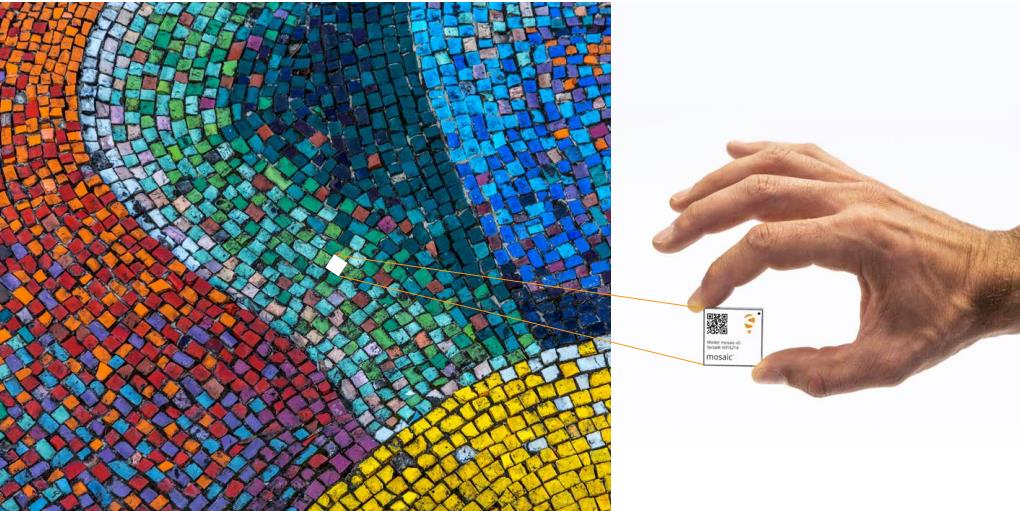

Sized at only 31 x 31 x 4 mm / 1.22 x 1.22 x 0.16 inches and weighing  only 7 g, mosaic-X5™ offers unmatched size to performance ratio. mosaic-X5™ includes:

* High update rate (>100 Hz) and low latency, both crucial for  control systems of autonomous applications

* Reliable centimetre-level positioning

* Full L2 support via P(Y) code

Designed for automated assembly

The  mosaic-X5™ module is designed for high volume automated  assembly lines with minimal amount of additional components  required. All interfaces, commands and data messages are fully  documented. The RxTools software suite allows convenient  receiver configuration, monitoring, data logging and analysis.  Offline processing is easy via our GeoTagZ software and its SDK  library for PPK (Post Processed Kinematic).

Advanced technologies inside

Septentrio’s GNSS+ toolset enables accuracy and reliability in the  toughest conditions, allowing you to complete projects with high  quality and efficiency. It includes:

* AIM+ the most advanced on-board interference mitigation  technology on the market (narrow and wide band, chirp  jammers).

* LOCK+ for robust tracking during high vibrations and  shocks.

* APME+ multipath mitigation to disentangle direct signal and  those reflected from nearby structures.

* IONO+ provides advanced protection against ionospheric  disturbances.


GNSS technology

448 hardware channels for simultaneous tracking  of all visible supported satellite signals1:

* GPS: L1C/A, L1PY, L2C, L2P, L5


* Beidou: B1I, B1C, B2a, B2I, B3

* Galileo: E1, E5a, E5b, E5 AltBoc

* QZSS: L1C/A, L2C, L5

* Navic: L5


* On module L-band

Septentrio's patented GNSS+ technologies

* AIM+ interference monitoring and mitigation  (narrow band, wide band, chirp jammers)

* IONO+ advanced scintillation mitigation

* APME+ a posteriori multipath estimator for  code and phase multipath mitigation

* LOCK+ superior tracking robustness under   heavy mechanical shocks or vibrations

* RAIM+ receiver autonomous integrity   monitoring

5 constellation RTK (base and rover) Moving base RTK2


Septentrio Binary Format (SBF)

NMEA 0183, v2.3, v3.03, V4.0

RINEX v2.x, v3.x

RTCM v2.x, v3.x (MSM included)

CMR v2.0 (out/in), CMR+ (input only)


4 UART (LVTTL, up to 4 Mbps)

Ethernet (RMII/MDIO), 10/100 Mbps

USB device (2.0, HS)

SDIO (mass storage)

2 GPIO user programmable

2 Event markers1

1 Configurable PPS out8


RTK performance 3,4,5

Horizontal accuracy           0.6 cm + 0.5 ppm

Vertical accuracy                     1 cm + 1 ppm

Initialisation time                                      7 s

Other positioning modes accuracy 3,4

                                      Horizontal      Vertical

Standalone                          1.2 m         1.9 m

SBAS                                    0.6 m         0.8 m

DGNSS                                 0.4 m         0.7 m

Velocity accuracy                                3 cm/s

Maximum update rate

Position                                                100 Hz

Measurements only                             100 Hz

Latency7                                            <10 ms

Time precision

xPPS out8                                                 5 ns

Event accuracy                                    < 20 ns

Time to first fix

Cold start                                          < 45 s

Warm start10                                       < 20 s

Re-acquisition                                           1 s

Tracking performance (C/N0 threshold)

Tracking                                          20 dB-Hz

Acquisition                                     33 dB-Hz


Free product lifetime upgrades



Type               SMT solderable land grid array

Size      31 x 31 x 4 mm / 1.29 x 1.29 x 0.15 in

Weight                                     6.8 g / 0.24 oz


Antenna pre-amplification range     15-50 dB

Antenna bias voltage                        3.0-5.5 V

                                               Build-in current

                                                  limit (150 mA)

Input voltage                          3.3 VDC +/-5%

Power consumption                        0.6 W typ

                                                       1.1 W max


Operating temp                          -40 to 85° C

                                                  -40 to 185° F

Storage temp                              -55 to 85° C

                                                  -67 to 185° F

Humidity            5% - 95% (non-condensing)

Vibration                                 MIL-STD-810G
