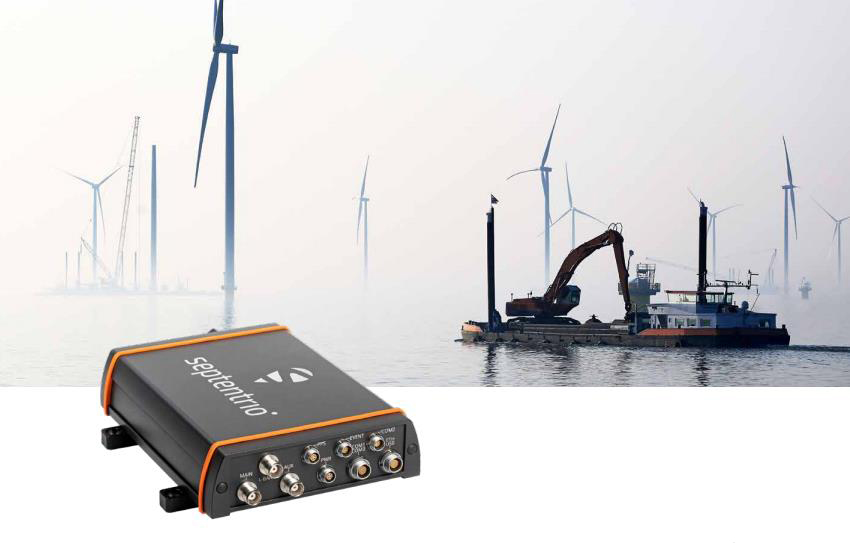

The AsteRx-U3 Marine is designed for marine survey  and construction users. It is a multi-frequency  GNSS receiver offering precise GNSS positioning  and heading with enhanced Iridium and Inmarsat  uplink interference mitigation.

KEY FEATURES

* Full-constellation, triple-frequency satellite tracking on both antennas

* Sub-degree GNSS heading & pitch or heading & roll

* Centimetre-level (RTK) and sub decimetre-level (PPP) position accuracy

* L-band reception, robust against Iridium and  Inmarsat uplink interference

* Support for FUGRO Marinestar corrections

* Septentrio GNSS+ algorithms for reliable performance

* Integrated UHF radio, cellular modem, Bluetooth and Wi-Fi

BENEFITS

Consistently accurate now and into the future

The AsteRx-U3 Marine is the most advanced integrated  multi-constellation dual-antenna receiver from Septentrio.  Its multi-frequency engine can track signals from all Global  Navigation Satellite System (GNSS) constellations: GPS,  GLONASS, Galileo, BeiDou, NavIC and QZSS – on both  antennas. This guarantees you reliable and accurate GNSS  positioning now and into the future.

Centimetre accuracy

Septentrio’s 20 years of experience in the GNSS industry  ensures that the AsteRx-U3 Marine offers you the highest  possible accuracy, down to a centimetre. LOCK+ technology  maintains tracking during heavy vibration and IONO+  ensures position accuracy even under periods of elevated  ionospheric activity. The AsteRx-U3 Marine offers the very  latest in advanced interference mitigation technology AIM+,  which filters out ambient intentional and unintentional  RF interference and allows this receiver to be resilient to  interference from Iridium and Inmarsat uplinks.

Any device, any platform

Use any device with a web browser to operate the AsteRx-U3  Marine without any special configuration software via the  Web interface accessible over Ethernet, Wi-Fi or a USB connections.

FEATURES

GNSS technology

544 Hardware channels for simultaneous  tracking of most visible signals:

* GPS: L1 C/A, L1C1 , L2C, L2 P(Y), L5

* GLONASS: L1 C/A, L2 C/A, L3, L2P

* BeiDou: B1I, B1C, B2a, B2I, B3I

* Galileo: E1, E5a, E5b, E5 AltBOC

* QZSS: L1 C/A, L1C1 , L2C, L5

* NavIC: L5

* SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM

Septentrio’s patented GNSS+ technologies

„ AIM+ unique mitigation and monitoring  system against narrow and wideband  interference with spectrum analyser

„ IONO+ advanced scintillation mitigation

„ APME+ a posteriori multipath estimator for  code and phase multipath mitigation

„ LOCK+ superior tracking robustness under  heavy mechanical shocks or vibrations

„ RAIM+ Receiver Autonomous Integrity Monitoring

RTK (base and rover)

Integrated L-band receiver with dedicated  antenna input

Moving base

GNSS heading & pitch or heading & roll

16 GB internal memory

Support for FUGRO Marinestar PPP service²

Formats

Septentrio Binary Format (SBF), fully

documented with sample parsing tools

RTCM v2x and 3x (MSM included)

CMR 2.0 and CMR+ (CMR+ input only)

NMEA 0183, v3.01, v4.0

UHF: Satel, Trimtalk (450S) Pacific

Crest (GMSK, 4FSK, FST)

Connectivity

3 Hi-speed serial ports (RS232)

Ethernet port (TCP/IP and UDP)

High-speed USB

1 Event marker

xPPS output (max. 100 Hz)

Bluetooth³  (2.1 + EDR/4.0)

WiFi3  (802.11 b/g/n)

UHF3  (410-475 MHz)

Cellular modem3 : LTE CAT4

4G LTE CAT4 (B1, B3, B5, B7, B8, B20)

3G UMTS/HSDPA/HSUPA (850/900/1900/2100)

2G GSM/GPRS/EDGE (850/900/1800/1900)

Certification

IP68, RoHS, WEEE, CE, ISO 9001-2015, UKCA
