mosaic-go CLAS evaluation kit

mosaic-go CLAS evaluation kit

GNSS module with PPP-RTK corrections for Japan

* Small size, big performance

* Multi-constellation, multi-frequency including L6 CLAS support

* Best-in-class RTK performance

* OSNMA Support

* AIM+ unique interference monitoring and mitigation system + advanced other GNSS+ algorithms

* Industry-leading ultra-low power consumption

* Easy-to-integrate

* Japan's Centimeter Level Augmentation Service (CLAS) integrated

Septentrio mosaic-go CLAS is a multi-constellation GNSS receiver evaluation kit packaged in a low-power surface mount module. With a wide array of interfaces, mosaic-go CLAS has been specifically designed for the needs of mass market applications like robotics and autonomous systems. This highly reliable, multi-frequency module supports the dedicated L6 signal enabling convenient plug-and-play sub-decimeter accuracy thanks to the integrated PPP-RTK correction service: Centimeter Level Augmentation Service (CLAS) provided by Japan’s Quasi-Zenith Satellite System (QZSS, aka Michibiki).

The GNSS+ Technologies - Top performance in challenging environments

Mechanical vibrations or shocks caused by rough terrain can wreak havoc with satellite tracking. LOCK+ automatically adjusts the parameters of this receiver so you never lose position.

Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth,  the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.

Metal and large nearby structures can reflect GNSS signals and produce multipath. The APME+ system effectively disentangles direct and reflected signals enhancing both position and measurement quality. APME+ is bias free and, in line with Septentrio’s commitment to maximum configurability, can be disabled.

Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.

Interference robustness

mosaic-go CLAS features Septentrio's AIM+ technology, the most advanced on-board interference mitigation technology on the market. It can suppress the widest variety of interferers, from simple continuous narrowband signals to the most complex wideband and pulsed jammers. The radiofrequency (RF) spectrum can be viewed in real-time in both time and frequency domains.

Ultra-low power design

mosaic-go CLAS provides RTK positioning at the lowest power consumption of any comparable device on the market.

Easy-to-integrate

mosaic-go CLAS comes with fully-documented interfaces, commands and data messages. The included RxTools software allows receiver configuration, monitoring as well as data logging and analysis.

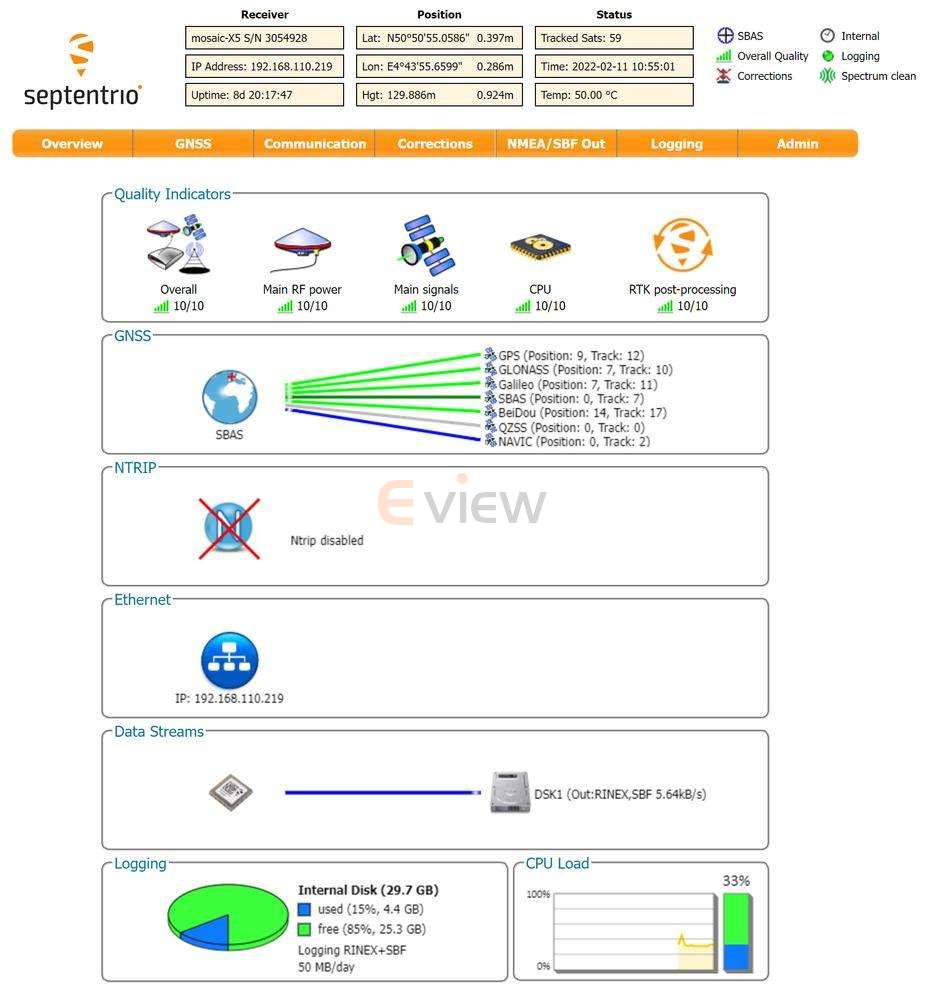

Intuitive web user interface

The mosaic-go CLAS includes an intuitive web user interface for easy operation and monitoring allowing you to control the receiver from any mobile device or computer. The web interface also uses easy-to-read quality indicators ideal to monitor the receiver operation during the job at hand.
