Product Description:

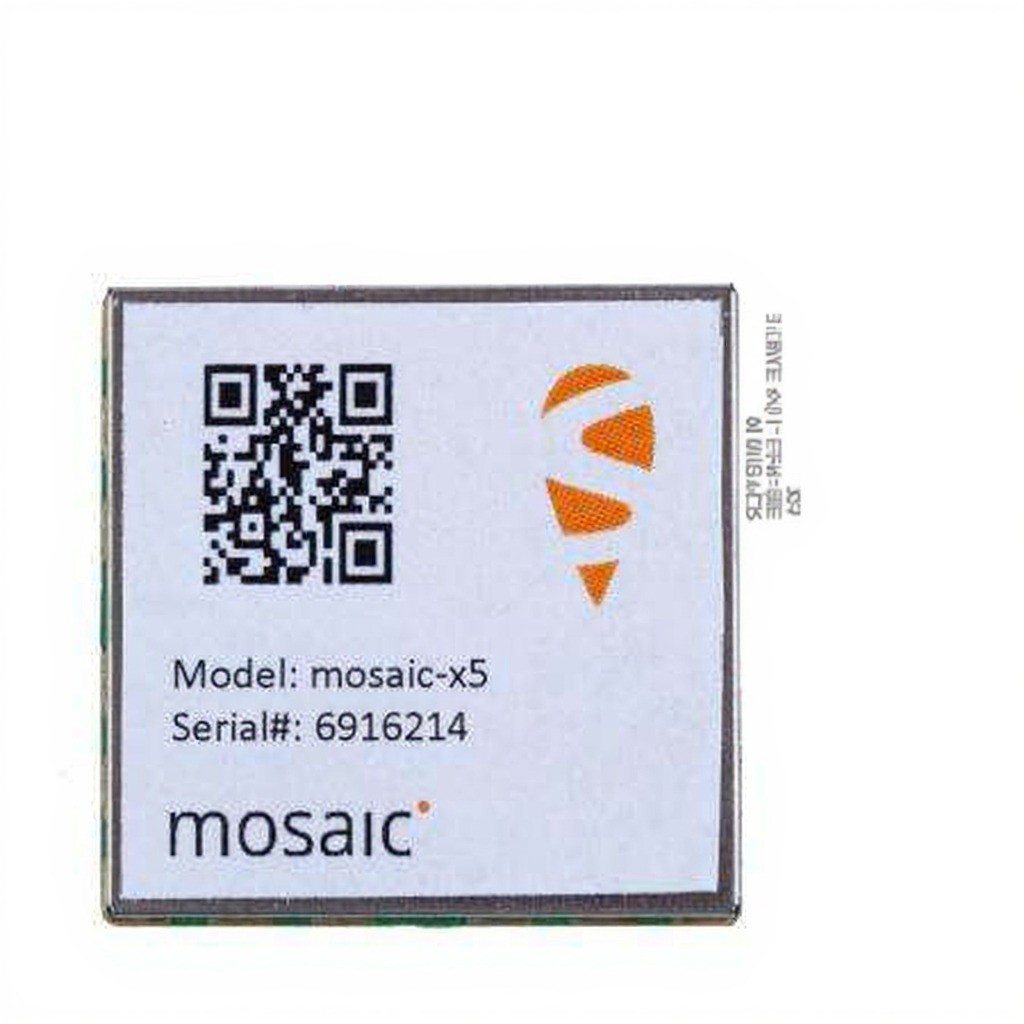

Mosaic X5 High-Precision GNSS Receiver
Multi-frequency, high anti-jamming GNSS Receiver
Key Features:
-
Positioning Accuracy:
-
GNSS: 2.0 m accuracy
-
RTK: 1.0 cm horizontal, 1.5 cm vertical
-
GNSS Support: Supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC, and SBAS in multi-constellation environments.
-
Ultra-Low Latency: Less than 10 ms.
-
Super Anti-Interference: Features AIM+ interference monitoring, APME+ multipath suppression, IONO+ ionospheric scintillation suppression, OSNMA anti-spoofing, and Lock+ tracking robustness.
-
High Refresh Rate: Up to 100 Hz navigation update rate.
-
Heading Output Support: Dual-antenna design for heading calculation.
-
Signal Stability: Reliable tracking under vibration, fast movement, and in harsh environments.
Technical Specifications:
Supported Satellite Bands:
-
GPS: L1C/A, L1C, L2C, L2P(Y), L5
-
BDS: B1I, B1C, B2a, B2I, B3I
-
GLONASS: L1C/A, L2C/A, L3, L2P
-
NavIC: L5
-
Galileo: E1, E5a, E5b
-
QZSS: L1C/A, L1C, L2C, L5
-
SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM
Detailed Specifications:
-
Tracking Performance (C/N0 Threshold): 20 dB-Hz
-
Capture Sensitivity: 33 dB-Hz
-
Positioning Time: Cold start < 45 s, Warm start < 20 s, Recapture 1 s
-
RTK Accuracy: Horizontal 1.0 cm, Vertical 1.5 cm
-
Initialization Time: 7 s
-
Timing Accuracy: XPPS: 5 ns, Event < 20 ns
-
Speed Accuracy: 0.03 m/s
-
Delay (99.9%): < 10 ms
-
GNSS Attitude Accuracy (1 m antenna spacing): Orientation 0.15°, Attitude 0.25°
-
GNSS Attitude Accuracy (5 m antenna spacing): Orientation 0.03°, Attitude 0.05°
-
Position Accuracy (Standalone): Horizontal 1.2 m, Vertical 1.9 m
-
Position Accuracy (SBAS): Horizontal 0.6 m, Vertical 0.8 m
-
Power Limitation: ≤ 4 g
-
Height Limitation: 18,000 m
-
Speed Limitation: 515 m/s
-
Baud Rate: 115200–4 Mbps
-
Maximum Update Rate: 100 Hz
-
Dimensions: Approximately 72 mm × 12.5 mm × 21 mm
Applications:
-
Drones
-
Surveying vehicles
-
Precision control
-
Construction monitoring
Working Diagram:
The Mosaic X5 works with
-
Satellite signal reception
-
RTCM differential corrections
-
Controller integration
-
CORS base station connectivity

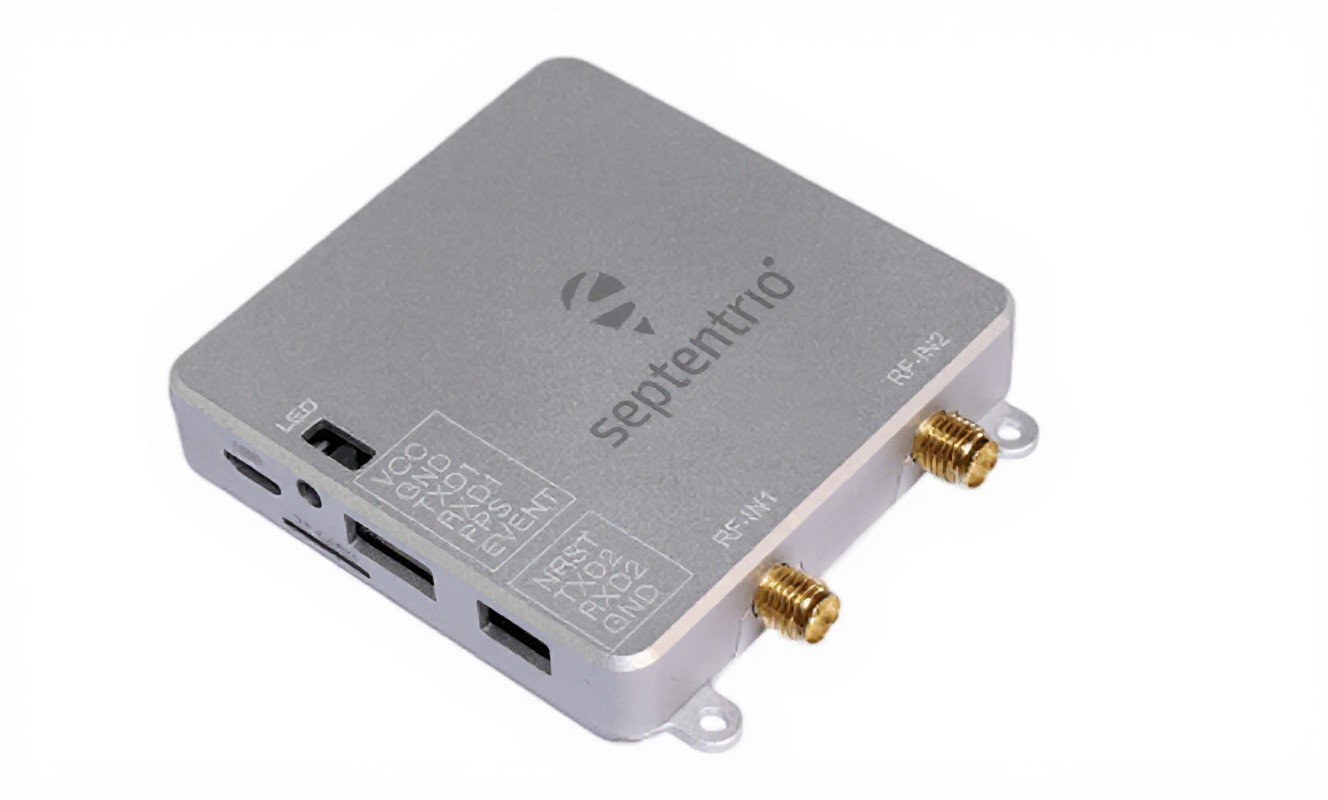

Interface Information:
-
Connection interfaces include:
-
Micro USB-C connector
-
UART interfaces
-
Power connections (VCC, GND)
-
Event and PPS outputs
-
Reset (NRST) functionality
-
Status LED indicators
