Mosaic-T

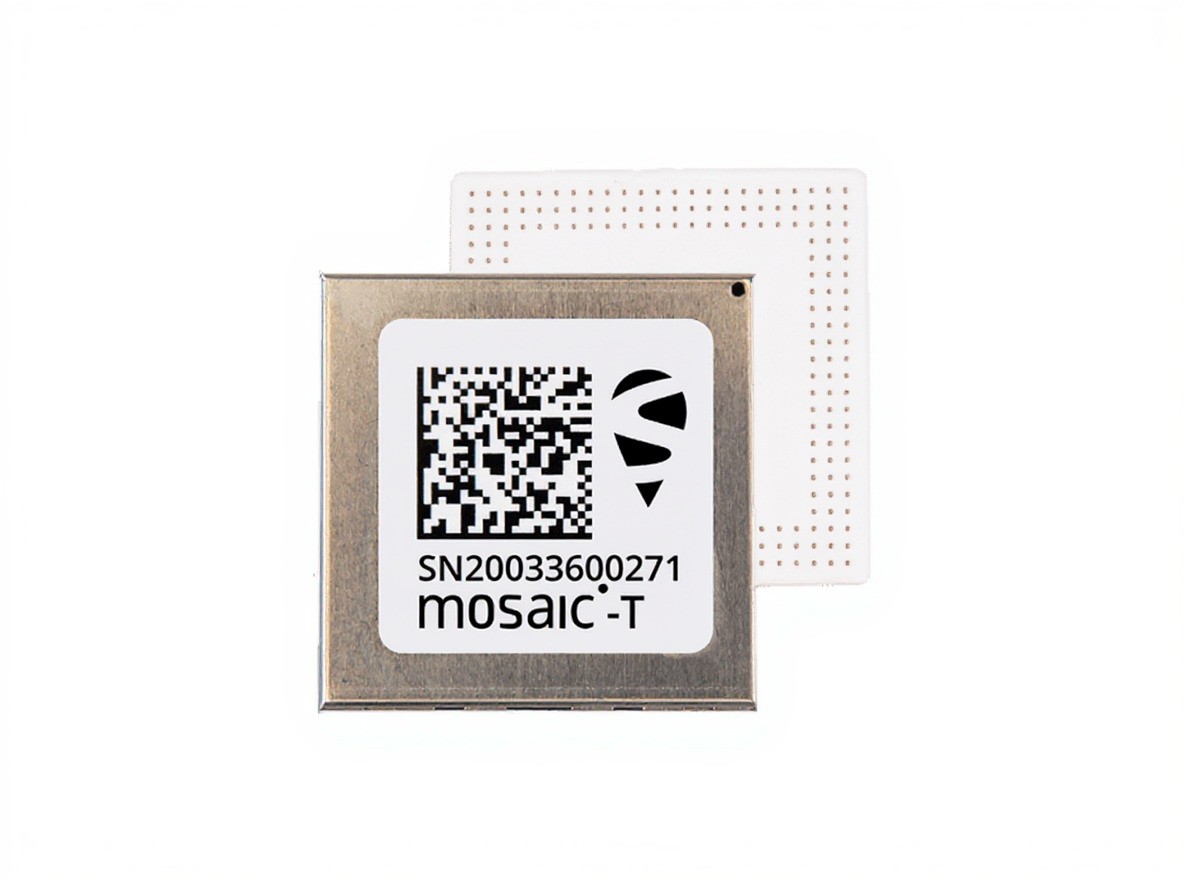

Septentrio mosaic-T
Compact multi-frequency GNSS timing receiver module

Applications: Timing | Scientific | IoT | Infrastructure | Telecommunication | Network

Benefits
Septentrio mosaic-T™ is a multi-band, multi-constellation GNSS timing receiver designed to deliver the highest security and availability for critical infrastructure and other applications where resilient timing is essential. As a low-power surface-mount module it includes a wide array of interfaces, including dedicated timing inputs for time and frequency synchronization.
The receiver offers superior availability by tracking all GNSS constellations and their current and future signals. With built-in AIM+ technology for anti-jamming, anti-spoofing and interference mitigation, mosaic-T™ delivers precise, resilient timing in a very small form factor. With optional AtomiChron services, mosaic-T provides 4-constellation NMA for superior anti-spoofing and precise timing reaching sub-nanosecond precision.

Top performance without compromises
Small size with solid performance: a high-precision solution for time and frequency synchronization even under jamming or spoofing. Unmatched resilience comes from all-constellation, multi-frequency capability and AIM+ technology.

More compact than ever
Sized at only 31 × 31 × 4 mm and weighing no more than 7 g, mosaic-T™ offers an unparalleled size-to-performance ratio.

Meant for automated assembly
Designed for high-volume automated assembly with minimal additional components. All interfaces, commands and data messages are fully documented. The complete RxTools software suite enables quick configuration, data logging and analysis.
Key Features

• Accurate and resilient with dedicated timing features
• All-in-view satellite tracking: multi-constellation, multi-frequency
• Dedicated inputs for clock and frequency synchronisation
• OSNMA and 4-constellation NMA support
• Highly secure against jamming and spoofing with AIM+; enhanced further via Fugro AtomiChron services
• Industry-leading ultra-low power consumption
• Easy-to-integrate

Advanced Technologies Inside

• AIM+ – advanced on-board interference mitigation (narrow/wide-band, chirp jammers)
• LOCK+ – robust tracking despite mechanical shocks and vibrations
• APME+ – multipath mitigation distinguishing direct from reflected signals
• IONO+ – protection against ionospheric disturbances
• RAIM+ – receiver autonomous integrity monitoring
• T-RAIM support

GNSS Technology

• 448 hardware channels for simultaneous tracking of all
