Product Description:

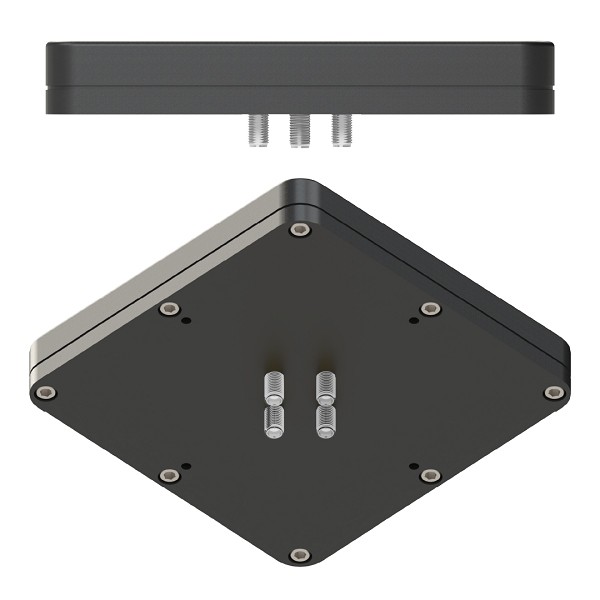

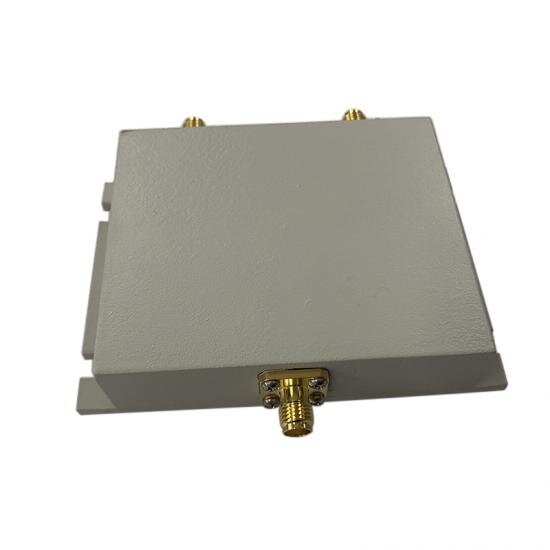

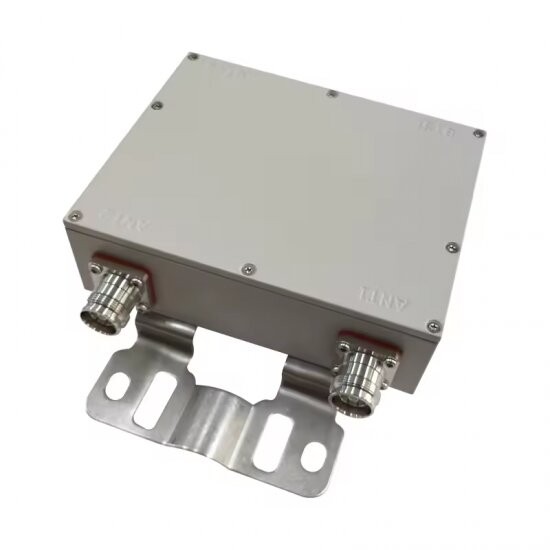

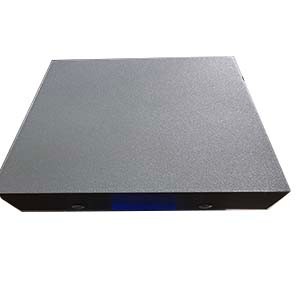

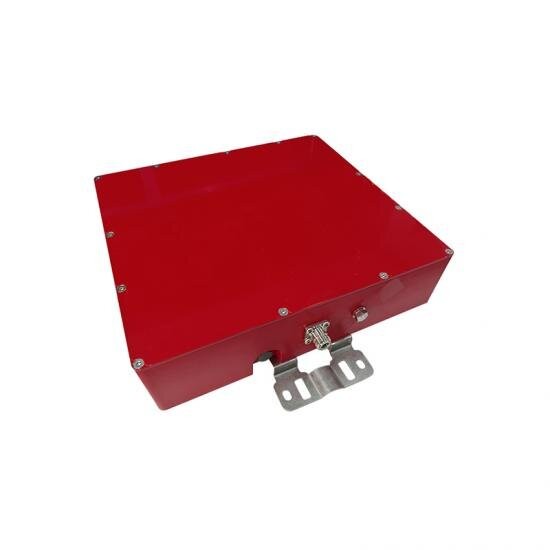

High-Precision Anti-Jamming Anti-Spoofing TK2

Product Features

1. Multi-mode high-precision positioning. Accuracy <1 m without being jammed, and 0.5–5 m with being jammed.

2.Active cancellation for GNSS jamming, fully analog, low power and low latency.

3.Adaptive narrowband filtering against full-band VCO sweep jamming for agile suppression.

4.Baseband signal timingly analysis, identifying and eliminate GNSS spoofing signals.

5.Multi-element antenna with adaptive beamforming to block interference from below the horizontal plane.

6.Low power consumption, can be powered directly by the flight controller without extra power supply

Specifications

Size	Available in 32×32 cm, 15×15 cm or 10×10 cm sizes.
Weight	<0.80kg, <0.30kg, <0.25kg
Power Consumption	<2w
Antenna Elements	5-8
Output Interface	Uart (5V/GND/TX）
Baud Rate	115200
Data Update Rate	10Hz
GNSS	GPS BDS GLONASS GaliLeo（Full-GNSS）
Max. Supported Speed	600m/s
Cold Start	<40s
Full Band RTK
Positioning Accuracy	<1 m without jamming, 0.5–5 m with jamming.
Anti-jamming Performance (15cm*15cm)	Single-Jammer：125dBc Dual-Jammer：115dBc
Anti-jamming Performance (15cm*15cm)	40 W full-band jammer, <5 m (single jammer) Dual 40 W full-band jammers, <10 m (dual jammers)

TK2 Comparison with Multi-Element Adaptive Nulling Receiver CRPA

• Antennas Compared : L1 four-element nulling antenna CRPA, B3 four-element nulling antenna, and TK2.

• Measurement Setup:

Since the nulling antennas CRPA have relatively narrow bandwidths that cover only part of the GNSS frequency spectrum, while the TK2 covers the entire GNSS band, the following setup was used to enable fair comparison of anti-jamming performance within the same frequency range:

When compared with the L1 nulling CRPA antenna, the L2, L5, and other lower-frequency bands of TK2 were disabled.

When compared with the B3 nulling CRPA antenna, the L1, B1, and other higher-frequency bands of TK2 were disabled.

Testing Results (15cm*15cm)

Jamming type/ Anti-jamming distance	TK2 (Lower-band signals disabled)	L1 nulling antenna CRPA
30W Single-Jamm.	<0.5m	12m
>100W Single-Jamm.	<5m	>50m (Test Site constraints)
30W+>100W Dual-Jamm.	20m	>50m (Test Site constraints)
30W+30W+>100W Tri.-Jamm.	50m	>50m (Test Site constraints)
1.5G jamming, frequency range covering 1.540-1.660GHz

Jamming type/ Anti-jamming distance	TK2 (Higher-band signals disabled)	B3 nulling antenna
30W Single-Jamm.	7m	13m
30W+30W Dual-Jamm.	50m	>50m (Test Site constraints)
1.2G jamming, frequency range covering 1.168–1.279GHz
